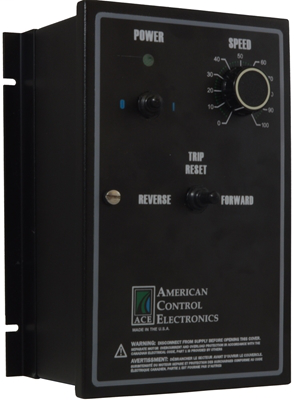

American Control Electronics PMB743-5.5-STL
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The next generation of PWM controls from American Control Electronics has arrived! Using a 115 or 230 VAC power source, the PMB Series is designed to run brushed DC motors, up to 180 VDC. The PWM technology creates a cleaner output voltage compared to older SCR circuitry, which allows the motor to run at a cooler operating temperature at comparatively higher and lower speeds. The PMB is also a regenerative control, meaning it can reverse on-the-fly without any contacts on the motor armature. The integrated dump circuitry eliminates the need for accessory cards and external relays in high inertia applications. The onboard microprocessor allows for custom programming for OEMs. Whether it’s as simple as changing the purpose of a jumper, input, or trim pot, to programming entire routines and behaviors specific only to the OEMs application, the PMB is great for integrating PLC like functionality into your operation. Doing this can eliminate the need of a separate PLC altogether or enhance a system that currently does not have one. The PMB Series has been tested to the 61800-5-1 Standard and is UL listed in the US and Canada, and includes isolation for remote control from an analog signal.PMB Series PMB743-5.5-STL None
American Control Electronics PMB743-5.5-STL is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Braking
- Yes (Regenerative)
- Enclosure
- NEMA 4X
- Field / Shunt Supply
- No
- Input Voltage (VAC)
- 115 / 230
- Isolation
- 0 ± 5 VDC || 0 ± 10 VDC || 4-20 mA
- Maximum Current (ADC)
- 5.5
- Model Number
- PMB743-5.5-STL
- Output Voltage (VDC)
- 0 - 90, 0 - 130, 0 - 180
- Power Range HP
- 1/20 - 1/2, 1/20 - 3/4, 1/10 - 1
- Power Range kW
- .04 - .37, .04 - .56, .07 - 0.75
- Reversing
- Yes (Regenerative)
