Description

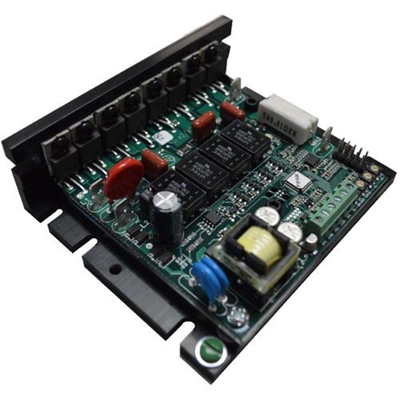

The MGB400 Series is a microprocessor-based, fully regenerative SCR control designed to provide basic but scalable function at very economical price points. Gone is the traditional ‘adder card’ that contained logic. That has reduced overall height by 33%, thus fitting into control panel space that most regenerative SCRs cannot. The MGB400 maintains the traditional ACE footprint and mounting pattern, making it easy for existing regenerative drive users to upgrade. The MGB400 was designed with the idea of customization for OEMs, with 4 trim pots and several inputs eligible for modification to suite your needs. Standard MGB400’s can perform speed or torque mode. The drive can accept a bidirectional signal, or provides a jumper so that bidirectional control can be achieved using only a unidirectional signal.MGB Series MGB400-1.5
American Control Electronics MGB400-1.5 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Braking
- Yes (Regenerative)
- Enclosure
- Chassis
- Field / Shunt Supply
- No
- Input Voltage (VAC)
- 115, 230
- Isolation
- No
- Maximum Current (ADC)
- 1.5
- Model Number
- MGB400-1.5
- Output Voltage (VDC)
- 0 - 90, 0 - 90, 0 - 180
- Power Range HP
- 1/50 - 1/8, 1/50 - 1/8, 1/25 - 1/4
- Power Range kW
- .01 - .09, .01 - .09, .03 - .19
- Reversing
- Yes (Regenerative)
