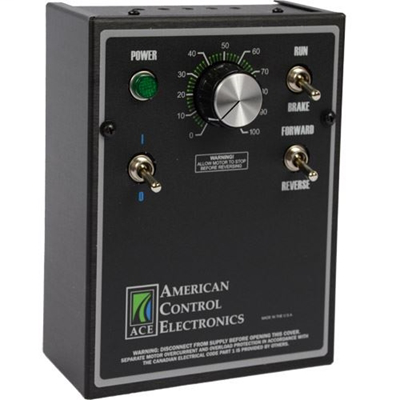

American Control Electronics LGD430-10
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The LGD series of motor drives is a versatile and compact SCR drive designed for any 1Q application where a field output is not required. With most of the features offered by the LGC family of drives, the LGD series offers even more flexibility. Unlike the LGC series where it’s inhibit function is actuated by the closing of the inhibit terminals, the LGD series allows you to choose either to open or close to inhibit. Other user selectable features include inhibiting to zero or to minimum speed, and torque mode or speed mode operation. With the unit set up to run in torque mode, you can easily control the amount of current that is supplied to your motor via an external potentiometer, perfect for tensioning applications. This feature rich series is easily adapted to meet almost any application need.LGD Series LGD430-10
American Control Electronics LGD430-10 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Braking
- Yes (Dynamic Braking Resistor)
- Enclosure
- NEMA 1
- Field / Shunt Supply
- No
- Input Voltage (VAC)
- 115, 230
- Isolation
- No
- Maximum Current (ADC)
- 10
- Model Number
- LGD430-10
- Output Voltage (VDC)
- 0 - 90, 0 - 90, 0 - 180
- Power Range HP
- 1/8 - 1, 1/8 - 1, 1/4 - 2
- Power Range kW
- .09 - .75, .09 - .75, .19 - 1.5
- Reversing
- Yes (Armature Switching)
