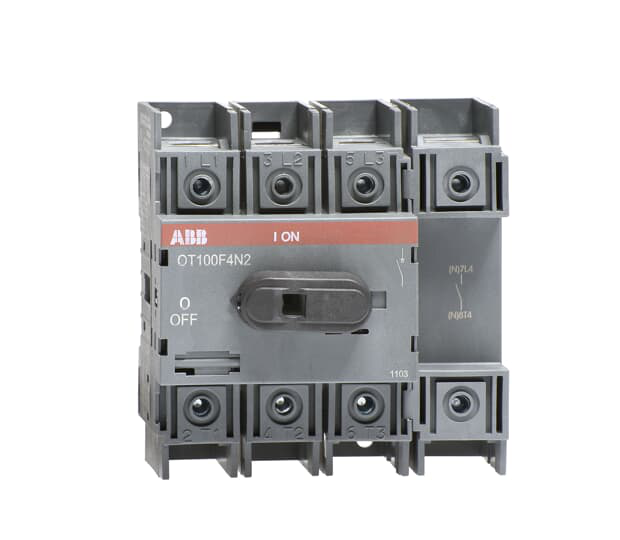

ABB OT100F4N2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
4-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with front protected clamp terminals, handle and shaft are not includedOT100F4N2 SWITCH-DISCONNECTOR
ABB OT100F4N2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Environmental Information
- 1SCC301264D0201
- REACH Declaration
- 1SCC011021D0201
- RoHS Information
- 1SCC011020D0201
Classifications
- eClass
- V11.1 : 27371403
- E-Number (Finland)
- 3601403
- E-Number (Sweden)
- 3171073
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- IDEA Granular Category Code (IGCC)
- 5290 >> Disconnect switch
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 74 mm
- Product Net Height
- 100 mm
- Product Net Weight
- 0.49 kg
- Product Net Width
- 96.5 mm
Environmental
- Environmental Information
- 1SCC301264D0201
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Country of Origin
- Finland (FI)
- Customs Tariff Number
- 85365080
- Minimum Order Quantity
- 10 piece
Technical
- Cable Cross-Section
- Cu 10 ... 70 mm²
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 115 A
- Conventional Thermal Current (Ithe)
- Fully Enclosed 115 A
- Degree of Protection
- Front IP20
- Distance Between Phases
- Standard
- Fourth Pole Position
- Right Side
- Fourth Pole Type
- Switched - Simultaneous Function
- Handle Type
- KnobHandle and shaft not included
- Lock Type
- No
- Mechanical Durability
- 20000
- Mounting Type
- Base mounting
- Number of Poles
- 4
- Operating Mode
- Front operated
- Pollution Degree
- 3
- Position of Line Terminals
- Top In - Bottom OutBottom In - Top Out
- Power Loss
- at Rated Operating Conditions per Pole 4.0 W
- Rated Conditional Short-Circuit Current (Inc)
- (125 A fuse, 415 V) 50 kA(125 A fuse, 690 V) 10 kA(63 A fuse, 690 V) 50 kA
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 750 V
- Rated Operational Current AC-21A (Ie)
- (380 ... 415 V) 100 A(500 V) 100 A(690 V) 100 A
- Rated Operational Current AC-22A (Ie)
- (380 ... 415 V) 100 A(500 V) 100 A(690 V) 100 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 80 A(500 V) 60 A(690 V) 40 A
- Rated Operational Power AC-23A (Pe)
- (220 ... 240 V) 22 kW(400 ... 415 V) 37 kW(500 V) 37 kW(690 V) 37 kW
- Rated Operational Voltage
- Main Circuit 750 V
- Rated Short-Circuit Making Capacity (Icm)
- (690 V) 3.6 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 2.5 kA
- Special Functions
- No
- Standards
- IEC 60947-3 / UL 98 / CSA C22.2 NO.4
- Switches Operating Mechanism
- Mechanism on Top of the Switch
- Terminal Type
- Screw Terminals
- Tightening Torque
- acc. IEC 60947-1 6 N·m
Technical UL/CSA
- Ampere Rating
- 100 A
- Horsepower Rating UL/CSA
- (110 ... 120 V AC) Single Phase 5 Hp(240 V AC) Single Phase 15 Hp(440 ... 480 V AC) Single Phase 25 Hp(550 ... 600 V AC) Single Phase 20 Hp(220 ... 240 V AC) Three Phase 30 Hp(440 ... 480 V AC) Three Phase 50 Hp(550 ... 600 V AC) Three Phase 50 Hp
- Maximum Operating Voltage UL/CSA
- 600 V
- Tightening Torque
- acc. IEC 60947-1 6 N·m
- Tightening Torque UL/CSA
- 55 in·lb
