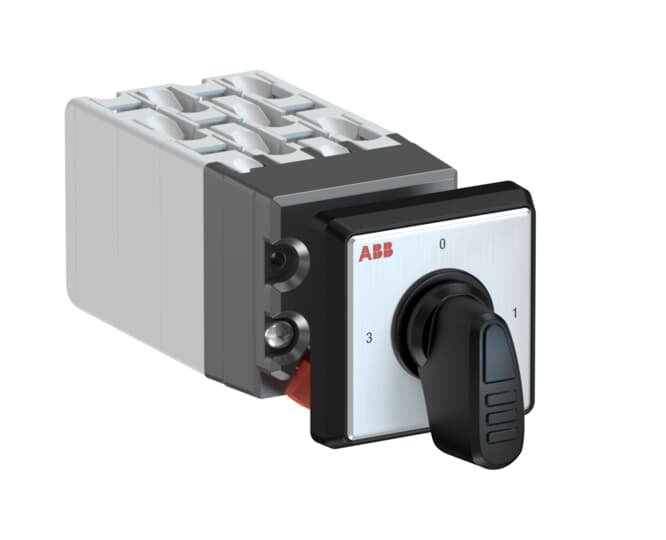

ABB OC10G06PNBN00NAU31

Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
ABB OC10G06PNBN00NAU31 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 5
- EC000912 - Amp meter switch
- ETIM 6
- EC000912 - Amp meter switch
- ETIM 7
- EC000912 - Amp meter switch
- Object Classification Code
- Q
- UNSPSC
- 39122217
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Container Information
- Package Level 1 Depth / Length
- 108 mm
- Package Level 1 EAN
- 6417019566351
- Package Level 1 Gross Weight
- 0.06 kg
- Package Level 1 Height
- 50 mm
- Package Level 1 Units
- 1 piece
- Package Level 1 Width
- 50 mm
Dimensions
- Product Net Depth / Length
- 93 mm
- Product Net Height
- 32 mm
- Product Net Weight
- 0.06 kg
- Product Net Width
- 32 mm
Ordering
- Last Ordering Date
- 2020-09-30 All Countries
Technical
- Color
- Black
- Conventional Free-air Thermal Current (Ith)
- q = 40 °C 10 A
- Conventional Thermal Current (Ithe)
- Fully Enclosed 10 A
- Enclosure Type
- Not enclosed
- Handle Type
- Basic handle
- Mounting Type
- Snap-on door mounting
- Number of Contacts
- 6
- Number of Poles
- 3
- Pollution Degree
- 3
- Power Loss
- 0.6 W
- Rated Continuous Thermal Current
- 10 A
- Rated Impulse Withstand Voltage (Uimp)
- 2.5 kV
- Rated Insulation Voltage (Ui)
- 500 V
- Rated Operational Current AC-22A (Ie)
- (500 V) 10 A
- Rated Operational Current AC-23A (Ie)
- (230 V) Single Phase 7.2 A(400 V) Single Phase 6.1 A(230 V) Three Phase 7.6 A(400 V) Three Phase 6.5 A
- Rated Operational Power AC-23A (Pe)
- (230 V) Three Phase 1.8 kW(400 V) Three Phase 3 kW
- Rated Operational Voltage
- 500 V
- Rated Short-time Withstand Current (Icw)
- for 1 s 0.12 kAfor 3 s 0.07 kA
- Special Functions
- Ammeter switch: For 3 current transformer circuits, with 0-position, step angle 90°, front plate 0-1-2-3
- Terminal Type
- Screw Terminals
Technical UL/CSA
- Ampere Rating UL/CSA
- 600 V AC 10 A
