Description

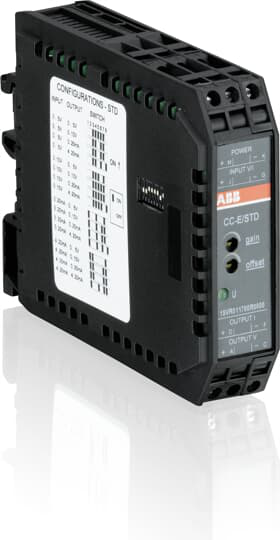

The CC-E/STD is an universal standard analog signal converter from the CC-E range. This converter, with 3-way electrical isolation, operates with a rated control supply voltage of 24 V DC. The 4 input signal ranges (0-5 V, 0-10 V, 0-20 mA, 4-0 mA) and the 4 output signal ranges (0-5 V, 0-0 V, 0-20 mA, 4-20 mA) can be configured by means of directly accessible lateral DIP switches. The adjustment of the gain and the offset is made via potentiometers on the front of the unit. Applied supply voltage is displayed by a green LED.CC-E/STD Signal converter, univers. V/I / V/I, 24VDC
ABB 1SVR011700R0000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27210120
- ETIM 9
- EC002653 - Isolation amplifier
- Object Classification Code
- T
Dimensions
- Product Net Depth / Length
- 107 mm
- Product Net Height
- 75 mm
- Product Net Weight
- 0.088 kg
- Product Net Width
- 22.5 mm
Environmental
- RoHS Information
- 1SVD981003-0001
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Ordering
- Customs Tariff Number
- 85369095
- Minimum Order Quantity
- 1 piece
- Product Main Type
- CC-E
Technical
- Function
- Standard signalsMultifunction
- Output Signal
- 0.5 V / 0 ... 10 V / 0 ... 20 mA / 4 ... 20 mA
- Power Loss
- Approximately 2 W
- Rated Control Supply Voltage (Us)
- 24 V DC
- Standards
- CAN/CSA C22.2 No.14CAN/CSA C22.2 No.213EN 50178IEC/EN 63000IEC/EN 61000-6-2IEC/EN 61000-6-4UL 1604UL 508
- Sub-Function
- Multifunction
