ABB 1SBN020112R1000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

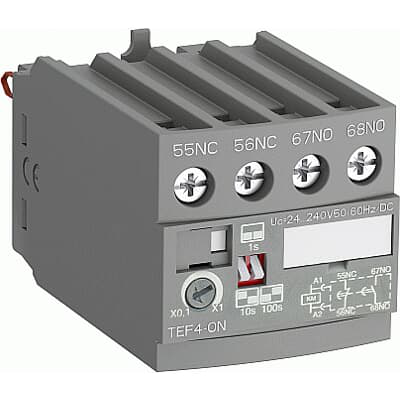

TEF4-ON is a frontal electronic timer used to realize the timing function and allow a compact solution in the cabinet compared to separate timers. TEF4 electronic timers are front-mounted and locked on AF, AFC contactors or NF, NFC contactor relays. A mechanical indicator allows to show the state of the contactor. TEF4 electronic timers are supplied by a direct plug-in parallel connection to the coil terminals A1 - A2 of the contactor or contactor relay. A varistor is integrated on the timer to offer a built-in protection against surges in the contactor coil. The TEF4 is available for a wide control voltage range 24...240 V AC/DC. TEF4 allow time-delayed functions up to 100 s in 3 distinct time ranges, independently of the control system. The time delay ranges are selected by a switch and the time delay can be adjusted by means of a rotary switch. The timing function of TEF4-ON is activated by closing the device on which the timer is mounted.TEF4-ON Frontal Electronic Timer
ABB 1SBN020112R1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371308
- E-Number (Finland)
- 3706012
- E-Number (Sweden)
- 3210205
- ETIM 9
- EC002060 - Timer block
- IDEA Granular Category Code (IGCC)
- 4746 >> Timer controls
- Object Classification Code
- K
Dimensions
- Product Net Depth / Length
- 67.7 mm
- Product Net Height
- 41.6 mm
- Product Net Weight
- 0.065 kg
- Product Net Width
- 43 mm
Environmental
- Ambient Air Temperature
- Close to Contactor for Storage -40 ... +80 °COperation -25 ... +70 °C
- Climatic Withstand
- Category B according to IEC 60947-1 Annex Q
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-5-1, Θ = 40 °C 5 A
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
- Maximum Operating Altitude Permissible
- Without Derating 2000 m
- Resistance to Vibrations acc. to IEC 60068-2-6
- 5 ... 300 Hz 3 g Closed position / 2 g Open position
- RoHS Information
- 2CMT2021-006277
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Ordering
- Customs Tariff Number
- 85389091
- Minimum Order Quantity
- 1 piece
- Product Main Type
- Accessories for Block Contactors
Technical
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1/2x 0.5 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid Solid 1/2x 1 ... 2.5 mm²Rigid Stranded 1/2x 1 ... 2.5 mm²
- Maximum Electrical Switching Frequency
- (AC-15) 1200 cycles per hour(DC-13) 900 cycles per hour
- Maximum Mechanical Switching Frequency
- 3600 cycles per hour
- Mounting Position
- Mounting positions 1, 1 +/- 30°, 2, 3, 4, 5
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 1
- Number of Poles
- 2
- Power Loss
- at 3 A per Pole 0.1 W
- Rated Frequency (f)
- Auxiliary Circuit 50 / 60 HzControl Circuit 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 4 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC 60947-5-1 400 Vacc. to UL/CSA 300 V
- Rated Operational Current AC-15 (Ie)
- (24 / 127 V) 3 A(220 / 240 V) 1.5 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 1 A / 24 W
- Rated Operational Voltage
- Auxiliary Circuit 240 V ACAuxiliary Circuit 24 V DC
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 0.1 s 8 Afor 1 s 8 A
- Setting Range
- 0.1 ... 100 second [unit of time]
- Standards
- IEC/EN 60947-5-1, UL 508, CSA C22-2 No. 14-18
- Suitable For
- AF09AF09ZAF12AF12ZAF16AF16ZAF26AF26ZAF30AF30ZAF38AF38ZAF40AF52AF65AF80AF96AFC09AFC12AFC16AFC26AFC30AFC38NF22ENFZ22ENF31ENFZ31ENF40ENFZ40ENFC22ENFC31ENFC40E
- Terminal Type
- Screw Terminals
- Tightening Torque
- Auxiliary Circuit 1.2 N·m
- Timer Relay Type
- ON-Delay
Technical UL/CSA
- Pilot Duty UL/CSA
- B300R300
- Tightening Torque UL/CSA
- Auxiliary Circuit 11 in·lb
