ABB 1SAZ811201R1003
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

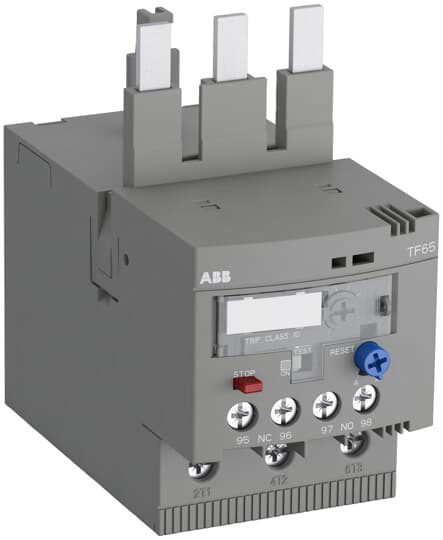

The TF65-40 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory.TF65-40 Thermal Overload Relay 30 ... 40 A
ABB 1SAZ811201R1003 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371501
- E-Number (Finland)
- 3706585
- E-Number (Sweden)
- 3210265
- ETIM 4
- EC000106 - Thermal overload relay
- ETIM 5
- EC000106 - Thermal overload relay
- IDEA Granular Category Code (IGCC)
- 5366 >> Thermal overload relay
- Object Classification Code
- F
Dimensions
- Product Net Depth / Length
- 106.9 mm
- Product Net Height
- 101.4 mm
- Product Net Weight
- 0.372 kg
- Product Net Width
- 54.9 mm
Environmental
- Ambient Air Temperature
- Operation -40 ... +70 °COperation Compensated -40 ... +70 °CStorage -50 ... +80 °C
- Ambient Air Temperature Compensation
- Yes
- Maximum Operating Altitude Permissible
- 2000 m
- Resistance to Shock acc. to IEC 60068-2-27
- 11 ms Pulse 25g
- Resistance to Vibrations acc. to IEC 60068-2-6
- 5g / 3 ... 150 Hz
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85364900
- Minimum Order Quantity
- 1 piece
Technical
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Flexible 1/2x 0.75 ... 1 mm²Flexible 1/2x 1 ... 2.5 mm²Rigid 1/2x 0.75 ... 4 mm²
- Connecting Capacity Main Circuit
- Flexible with Ferrule 1/2x 2.5 ... 10 mm²Flexible with Ferrule 1x 2.5 ... 35 mm²Flexible with Insulated Ferrule 1x 2.5 ... 35 mm²Flexible with Insulated Ferrule 1/2x 2.5 ... 10 mm²Flexible 1/2x 2.5 ... 16 mm²Flexible 1x 2.5 ... 35 mm²Rigid 1/2x 2.5 ... 16 mm²Rigid 1x 2.5 ... 35 mm²
- Conventional Free-air Thermal Current (Ith)
- Auxiliary Circuit NC 6 AAuxiliary Circuit NO 4 A
- Degree of Protection
- Housing IP20Main Circuit Terminals IP10
- Mounting Position
- 1 ... 6
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 1
- Number of Poles
- 3
- Number of Protected Poles
- 3
- Pollution Degree
- 3
- Power Loss
- at Rated Operating Conditions per Pole 2.1 ... 3.7 W
- Rated Frequency (f)
- Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DCMain Circuit 50 HzMain Circuit 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- Auxiliary Circuit 6 kVMain Circuit 8 kV
- Rated Insulation Voltage (Ui)
- 690 V
- Rated Operational Current AC-15 (Ie)
- (120 V) NC 3 A(120 V) NO 0.5 A(240 V) NC 3 A(240 V) NO 0.5 A(400 V) NC 0.75 A(400 V) NO 0.5 A(500 V) NC 0.75 A(500 V) NO 0.5 A
- Rated Operational Current DC-13 (Ie)
- (125 V) NC 0.55 A(125 V) NO 0.55 A(24 V) NC 1.25 A(24 V) NO 1.25 A(250 V) NC 0.27 A(250 V) NO 0.27 A(500 V) NC 0.15 A(500 V) NO 0.15 A(60 V) NC 0.55 A(60 V) NO 0.55 A
- Rated Operational Current (Ie)
- 40 A
- Rated Operational Voltage
- Auxiliary Circuit 600 V AC/DCMain Circuit 690 V ACMain Circuit 440 V DC
- Recommended Screw Driver
- Auxiliary Circuit Pozidriv 2Main Circuit Pozidriv 2
- Setting Range
- 30 ... 40 A
- Standards
- IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1
- Suitable For
- AF40AF52AF65
- Tightening Torque
- Auxiliary Circuit 1 ... 1.2 N·mMain Circuit 4.0 ... 4.5 N·m
- Wire Stripping Length
- Auxiliary Circuit 9 mmMain Circuit 17 mm
Technical UL/CSA
- Connecting Capacity Auxiliary Circuit UL/CSA
- Flexible 1/2x 18-12 AWGStranded 1/2x 18-12 AWG
- Connecting Capacity Main Circuit UL/CSA
- Flexible 1x 12-2 AWGFlexible 2x 12-6 AWGStranded 1x 12-2 AWGStranded 2x 12-6 AWG
- Contact Rating UL/CSA
- (NC:) B600(NC:) Q600(NO:) Q600(NO:) D300
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
- Tightening Torque UL/CSA
- Auxiliary Circuit 9 ... 11 in·lbMain Circuit 35 ... 40 in·lb
