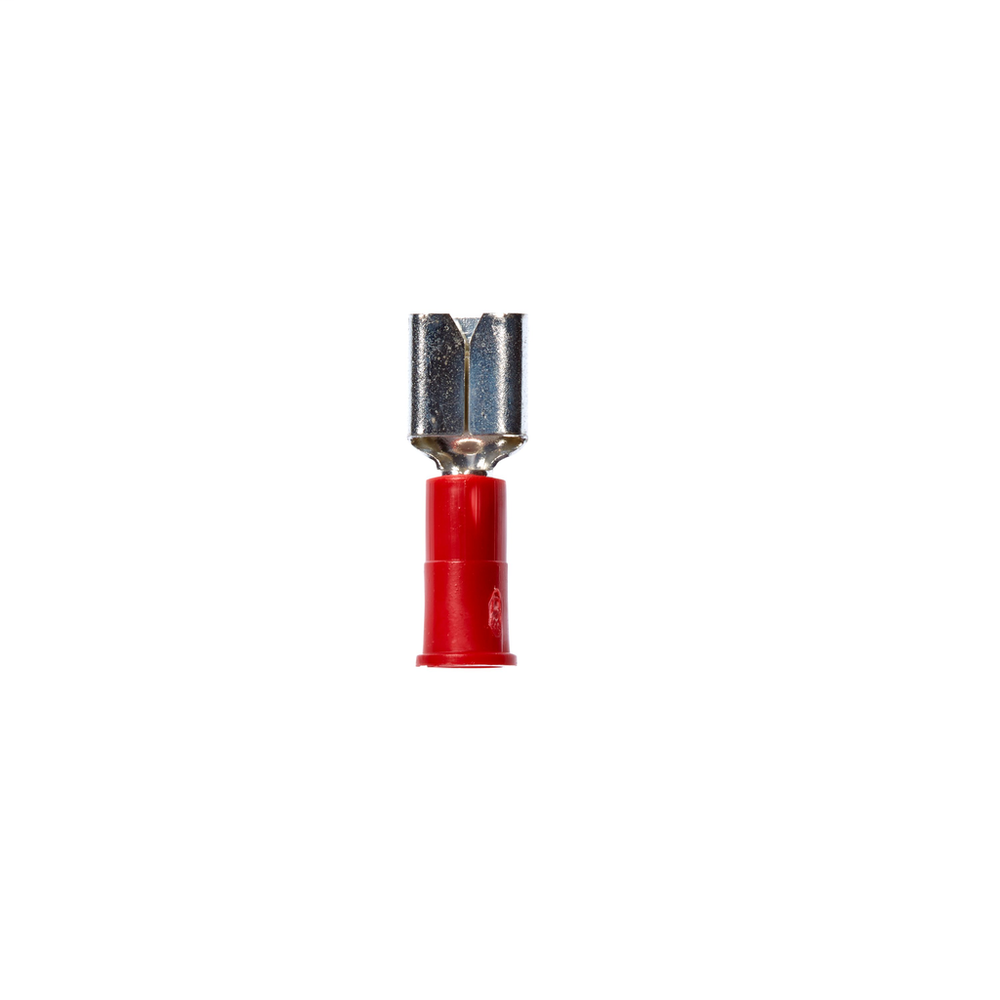

3M MVU18-250DFX
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.3M™ Scotchlok™ Female Disconnect Vinyl Insulated, 100/bottle,MVU18-250DFX, allows for quick and easy disconnect of wires
3M MVU18-250DFX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging
- Package Height
- 4.37500 in
- Package Length
- 1.62500 in
- Package Weight
- 0.3961 LBS
Specifications
- Barrel Inside Diameter
- 0.080 Inch
- Barrel Length (Imperial)
- 0.25 Inch
- Barrel Style
- Butted
- Color Family (incorporate Product Color)
- Red
- Conductor Size
- 22 - 18 AWG
- Connection Type
- Wire
- Connection Width (Imperial)
- 0.25 in
- Connection Width (Metric)
- 6.35 mm
- Connector / Connector Tool
- Connector
- Connector Style
- Insulation Displacement
- Diameter (D)
- 0.23 Inch
- Disconnect Type
- Female
- Fastener Orientation
- Female
- Flame Retardant
- No
- Grease Filling Against Corrosion
- No
- Insulation Color
- Red
- Insulation Material
- Vinyl
- Insulation Outer Diameter (Metric)
- 3.68 mm
- Interrupt Free Shifting
- No
- Manufacturer Catalog Number
- 7000133356
- Manufacturing Origin
- USA
- Material
- ETP Copper
- Mates with Female Width
- 0.250 Inch
- Mates with Male Tab Width (W')
- 0.25 Inch
- Maximum Conductor Size
- 18 AWG
- Maximum Insulation Outer Diameter (Imperial)
- 0.145 Inch
- Maximum Insulation Outer Diameter (Metric)
- 3.7 mm
- Maximum Insulation Outside Diameter
- 0.145 in
- Maximum Operating Temperature (Celsius)
- 105 Degree Celsius
- Maximum Operating Temperature (Fahrenheit)
- 221 Degree Fahrenheit
- Maximum Recommended Voltage Rating
- 600 V
- Maximum Wire Gauge
- 18 AWG
- Minimum Conductor Size
- 22 AWG
- Minimum Wire Gauge
- 22 AWG
- Overall Diameter (Imperial)
- 0.23 in
- Overall Length (Imperial)
- 0.87 in
- Overall Length (Metric)
- 22.09 mm
- Overall Width (Imperial)
- 0.37 in
- Pad Width
- 0.25 in
- Tab Width
- 0.187
- Terminal Style
- Standard
- Terminal Type
- Standard
