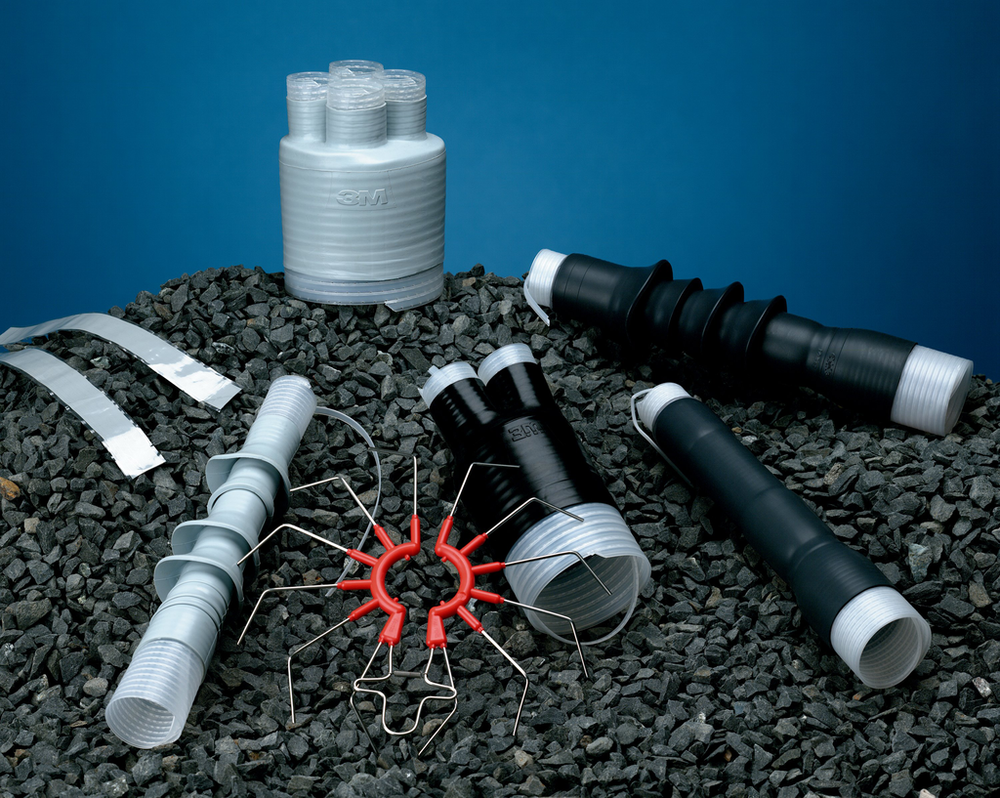

3M 7695-S-4

Specifications

• Breakout Boot
  • No
• Cable Insulation Outside Diameter Range (Metric)
  • 1.05-1.80 in
• Cable Shielding
  • UniShield®|| Wire Shield|| Tape Shield
• Conductor Size by Voltage
  • (5 kV) 700-1500 kcmil, (8 kV) 600-1250 kcmil, (15 kV) 500-1000 kcmil, (25/28 kV) 250-800 kcmil
• Indoor/Outdoor
  • Outdoor Skirted
• Insulation Level
  • 100%|| 133%
• Insulation Outer Diameter (Imperial)
  • 1.05 in|| 1.1 in|| 1.32 in|| 1.25 in|| 1.22 in|| 1.07 in|| 1.08 in|| 1.09 in|| 1.34 in|| 1.41 in|| 1.24 in|| 1.23 in|| 1.14 in|| 1.13 in|| 1.16 in|| 1.17 in|| 1.18 in|| 1.33 in|| 1.21 in|| 1.15 in|| 1.06 in|| 1.26 in|| 1.27 in|| 1.28 in|| 1.29 in|| 1.3 in|| 1.31 in|| 1.12 in|| 1.11 in|| 1.2 in|| 1.35 in|| 1.36 in|| 1.37 in|| 1.38 in|| 1.39 in|| 1.4 in|| 1.19 in|| 1.42 in|| 1.43 in|| 1.62 in|| 1.48 in|| 1.49 in|| 1.5 in|| 1.51 in|| 1.52 in|| 1.53 in|| 1.63 in|| 1.64 in|| 1.45 in|| 1.57 in|| 1.58 in|| 1.59 in|| 1.6 in|| 1.61 in|| 1.73 in|| 1.71 in|| 1.72 in|| 1.44 in|| 1.46 in|| 1.47 in|| 1.65 in|| 1.66 in|| 1.67 in|| 1.68 in|| 1.69 in|| 1.7 in|| 1.55 in|| 1.56 in|| 1.54 in|| 1.74 in|| 1.75 in|| 1.76 in|| 1.77 in|| 1.78 in|| 1.79 in|| 1.8 in
• Insulation Outer Diameter (Metric)
  • 26.67 mm|| 27.94 mm|| 33.528 mm|| 31.75 mm|| 30.988 mm|| 27.178 mm|| 27.432 mm|| 27.686 mm|| 34.036 mm|| 35.814 mm|| 31.496 mm|| 31.242 mm|| 28.956 mm|| 28.702 mm|| 29.464 mm|| 29.718 mm|| 29.972 mm|| 33.782 mm|| 30.734 mm|| 29.21 mm|| 26.924 mm|| 32.004 mm|| 32.258 mm|| 32.512 mm|| 32.766 mm|| 33.02 mm|| 33.274 mm|| 28.448 mm|| 28.194 mm|| 30.48 mm|| 34.29 mm|| 34.544 mm|| 34.798 mm|| 35.052 mm|| 35.306 mm|| 35.56 mm|| 30.226 mm|| 36.068 mm|| 36.322 mm|| 41.148 mm|| 37.592 mm|| 37.846 mm|| 38.1 mm|| 38.354 mm|| 38.608 mm|| 38.862 mm|| 41.402 mm|| 41.656 mm|| 36.83 mm|| 39.878 mm|| 40.132 mm|| 40.386 mm|| 40.64 mm|| 40.894 mm|| 43.942 mm|| 43.434 mm|| 43.688 mm|| 36.576 mm|| 37.084 mm|| 37.338 mm|| 41.91 mm|| 42.164 mm|| 42.418 mm|| 42.672 mm|| 42.926 mm|| 43.18 mm|| 39.37 mm|| 39.624 mm|| 39.116 mm|| 44.196 mm|| 44.45 mm|| 44.704 mm|| 44.958 mm|| 45.212 mm|| 45.466 mm|| 45.72 mm
• Insulation Rejacketing
  • No
• Lug/Stem Connector Included in Kit
  • No
• Manufacturer Catalog Number
  • 7000006122
• Manufacturing Origin
  • USA
• Maximum Installed Length
  • 12.25 in
• Number of Conductors
  • 1
• Number of Skirts
  • 4
• Voltage
  • 8 kV|| 5 kV|| 28 kV|| 25/28 kV|| 15 kV
• Voltage Application
  • Medium Voltage
