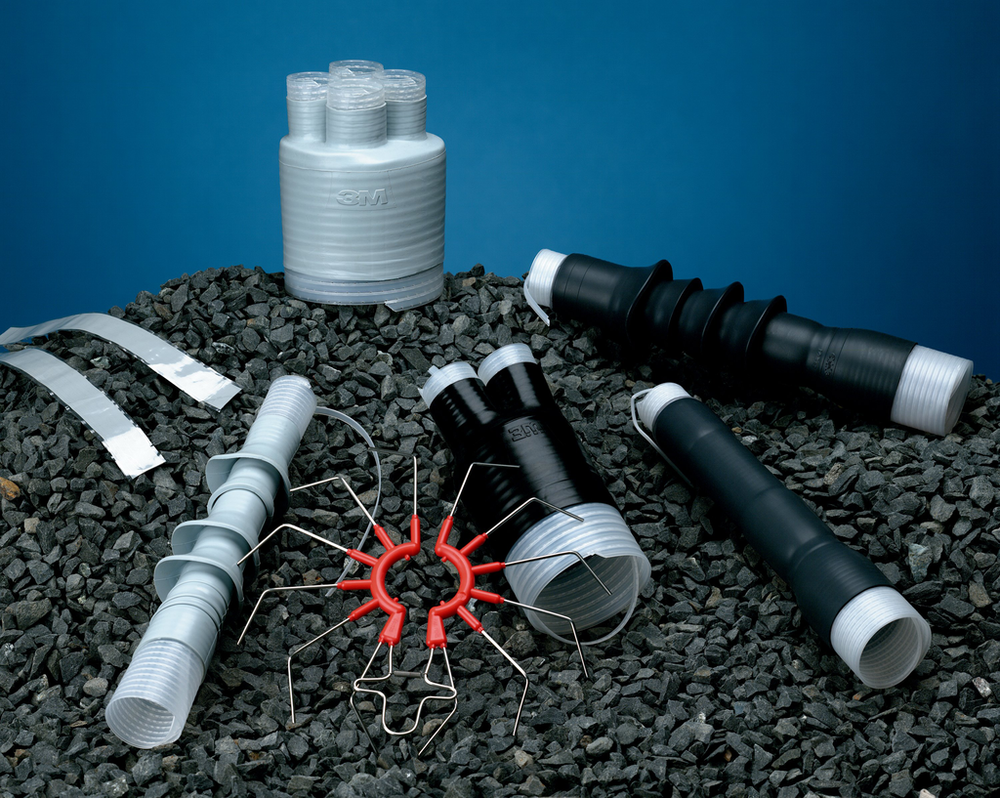

3M 7622-T-110

Specifications

• Breakout Boot
  • No
• Cable Insulation Outside Diameter Range (Metric)
  • 0.64-1.08 in
• Cable Shielding
  • Tape Shield|| UniShield®|| Wire Shield
• Conductor Size by Voltage
  • (5 kV) 4/0 AWG-400 kcmil, (8 kV) 3/0 AWG-300 kcmil, (15 kV) 2-4/0 AWG
• Indoor/Outdoor
  • Indoor Non-skirted
• Insulation Level
  • 100%|| 133%
• Insulation Outer Diameter (Imperial)
  • 0.64 in|| 0.76 in|| 0.66 in|| 0.67 in|| 0.68 in|| 0.69 in|| 0.7 in|| 0.71 in|| 0.72 in|| 0.73 in|| 0.85 in|| 0.75 in|| 0.65 in|| 0.77 in|| 0.78 in|| 0.79 in|| 0.8 in|| 0.81 in|| 0.82 in|| 0.83 in|| 0.84 in|| 0.74 in|| 0.86 in|| 0.97 in|| 0.99 in|| 0.89 in|| 0.9 in|| 0.91 in|| 0.92 in|| 0.93 in|| 0.94 in|| 0.95 in|| 0.96 in|| 0.87 in|| 0.98 in|| 0.88 in|| 1 in|| 1.01 in|| 1.02 in|| 1.03 in|| 1.04 in|| 1.05 in|| 1.06 in|| 1.07 in|| 1.08 in
• Insulation Outer Diameter (Metric)
  • 16.256 mm|| 19.304 mm|| 16.764 mm|| 17.018 mm|| 17.272 mm|| 17.526 mm|| 17.78 mm|| 18.034 mm|| 18.288 mm|| 18.542 mm|| 21.59 mm|| 19.05 mm|| 16.51 mm|| 19.558 mm|| 19.812 mm|| 20.066 mm|| 20.32 mm|| 20.574 mm|| 20.828 mm|| 21.082 mm|| 21.336 mm|| 18.796 mm|| 21.844 mm|| 24.638 mm|| 25.146 mm|| 22.606 mm|| 22.86 mm|| 23.114 mm|| 23.368 mm|| 23.622 mm|| 23.876 mm|| 24.13 mm|| 24.384 mm|| 22.098 mm|| 24.892 mm|| 22.352 mm|| 25.4 mm|| 25.654 mm|| 25.908 mm|| 26.162 mm|| 26.416 mm|| 26.67 mm|| 26.924 mm|| 27.178 mm|| 27.432 mm
• Insulation Rejacketing
  • No
• Lug/Stem Connector Included in Kit
  • No
• Manufacturer Catalog Number
  • 7000006101
• Manufacturing Origin
  • USA
• Maximum Installed Length
  • 12.00 in
• Number of Conductors
  • 1
• Voltage
  • 8 kV|| 15 kV|| 5 kV
• Voltage Application
  • Medium Voltage
