3M 7100165663
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

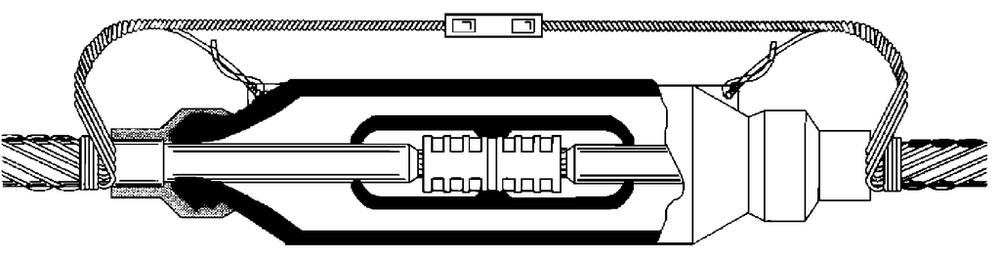

3M™ Molded Rubber QS Inline JCN/CN Splice Kits 5400 Series are inline splices designed for use on 15 kV concentric neutral (CN) or jacketed concentric neutral (JCN) cable. The continuous current rating of each splice is equal to the current rating of the cable it is sized to accommodate. Meets requirements of IEEE 404 for cable joints. Jacketing kit is needed for JCN cable. Each kit makes one splice. Connectors, unless specified, are not included in the kit, and must be ordered separately. Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.3M™ QS Molded Rubber Splice Kit 5407, CN and JCN Cable, 15 kV, 500 kcmil, Cable Insulation O.D. 1.060-1.210 in, 1/case
3M 7100165663 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Cable Shielding
- Jacketed Concentric Neutral (JCN) - Concentric Neutral (CN)
- Conductor Material
- Copper - Aluminum
- Connector Included
- null
- Insulation Outer Diameter (Imperial)
- 1.14 in - 1.28 in - 1.15 in - 1.25 in - 1.18 in - 1.2 in - 1.22 in - 1.19 in - 1.23 in - 1.21 in - 1.31 in - 1.13 in - 1.3 in - 1.17 in - 1.24 in - 1.32 in - 1.27 in - 1.12 in - 1.26 in - 1.29 in - 1.16 in
- Insulation Outer Diameter (Metric)
- 29.972 mm - 31.75 mm - 29.21 mm - 30.734 mm - 32.766 mm - 33.02 mm - 28.448 mm - 32.512 mm - 29.464 mm - 33.274 mm - 31.496 mm - 29.718 mm - 30.48 mm - 30.226 mm - 32.258 mm - 28.956 mm - 31.242 mm - 32.004 mm - 30.988 mm - 28.702 mm - 33.528 mm
- Maximum Stranded Conductor Size
- 500 kcmil
- Number of Conductors
- 1
- Operating Voltage
- 15 kV
- Product Technology
- Molded Rubber
- Product Type
- Inline Splice
- RoHS EU Comments
- Contact 3M for information
- Splice Type
- Inline
