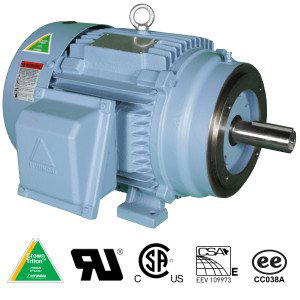

WorldWide Electric HHI7.5-36-213TC
Description
WorldWide Electric HHI7.5-36-213TC is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ag/Farm Duty (single Phase)
- No
- Ag/Farm Duty (three phase)
- Yes
- Approx Weight (lbs)
- 150
- Conduit Box Location
- F1
- country of Origin
- South Korea
- DE Bearing Type
- Ball
- Definite Purpose
- No
- Duty Cycle
- Continuous
- Enclosure Type
- TEFC
- Fan Cover (material)
- Rolled Steel
- FL Amps (A) - 208V
- 19.903846153846153
- FL Amps (A) - 230V
- 18
- FL Amps (A) - 460V
- 9
- FL. Eff (%)
- 89.5
- Frame Material
- Cast Iron
- Frame size
- 213TC
- Frequency (hz)
- 50/60
- General Purpose
- Yes
- Harmony Code
- 8501.52.4000
- Hazardous Location (class 1 Division 2 Groups A, B, C, and D)
- Yes
- Hazardous Location (Explosion Proof)
- No
- Hazardous Location Rating
- Class 1 Division 2 Groups A, B, C, and D
- HP
- 7.5
- Insulation Class
- F with N Varnish
- inverter Duty
- Yes
- Inverter Rating
- 10:1 CT and 20:1 VT
- Junction Box (material)
- Cast Iron
- Motor Phase
- 3
- Mounting Type
- Foot Mount and C Face Mount
- NEMA Design
- B
- ODE Bearing Type
- Ball
- Overall Length (C Dim - inches)
- 18.86
- Pole
- 2
- Pump (not close coupled)
- Yes
- RPM
- 3600
- Service Factor
- 1.15
- Service factor at 50hz
- 1
- Severe Duty
- Yes
- Shaft Diameter (in)
- 1.375
- Temp Code (40 Deg C)
- T3C
- Temp Code (55 Deg C)
- T3A
- Voltage (50hz)
- 190/380, 200/400, 208/415
- Voltage (60hz)
- 208-230/460
- Washdown Duty
- No
