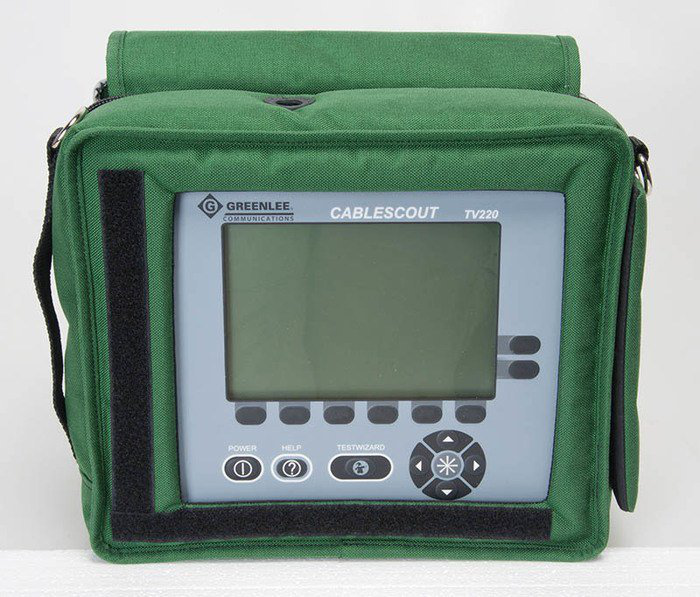

Greenlee TV220
Description
Greenlee TV220 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- AC Operation
- Voltage Ranges: 110 V, 220 V,Or 240 V With Appropriate AC To DC Adapter, Line Frequency:50 - 60 HZ
- Application
- For CATV And Digital Broadband Coax Applications
- Battery Operation
- Type: 10.8 V, 2.4 Ah, Lithium-ion, Operating Time: Typically 8 HR Continuous Operation (Backlight Off)
- Depth
- 3.500 IN
- Distance Measurements
- Meters, Feet, Nanoseconds
- Durability
- Survives Drop Of 2.000 MR (6.000 FT) To Concrete Standard Soft Case, Drip Proof, Dust Resistant
- Field Usage
- Shock, Water, And Dust Resistant
- Height
- 10.000 IN
- Humidity
- 10 - 95 PCT (Non-Condensing)
- Includes
- Instructional Manual, Quick Reference Card, BCN- Alligator Clips Test Leads, F To BCN Type Adapter, Female-Female Type F Adapter (120 V US Comes Standard)
- Input Protection
- Max current: 2.0 A maximum from charger connector
- Non-Operating Temperature
- -20 To +60°C (-4 To +140°F)
- Output
- Test Signal Output - 1/2 Sine, Amplitude - 4 V Into 75 OHM,Pulse Width - 1 NS, 5 NS, 25 NS, Output Impedance - 75 OHM,Acquisition System Bandwidth - 400 MHZ IN
- Output Port
- Interface - USB Port
- Warranty
- 1 YR
- Weight
- 5.100 LB (2.300 KG)
- Width
- 12.000 IN
