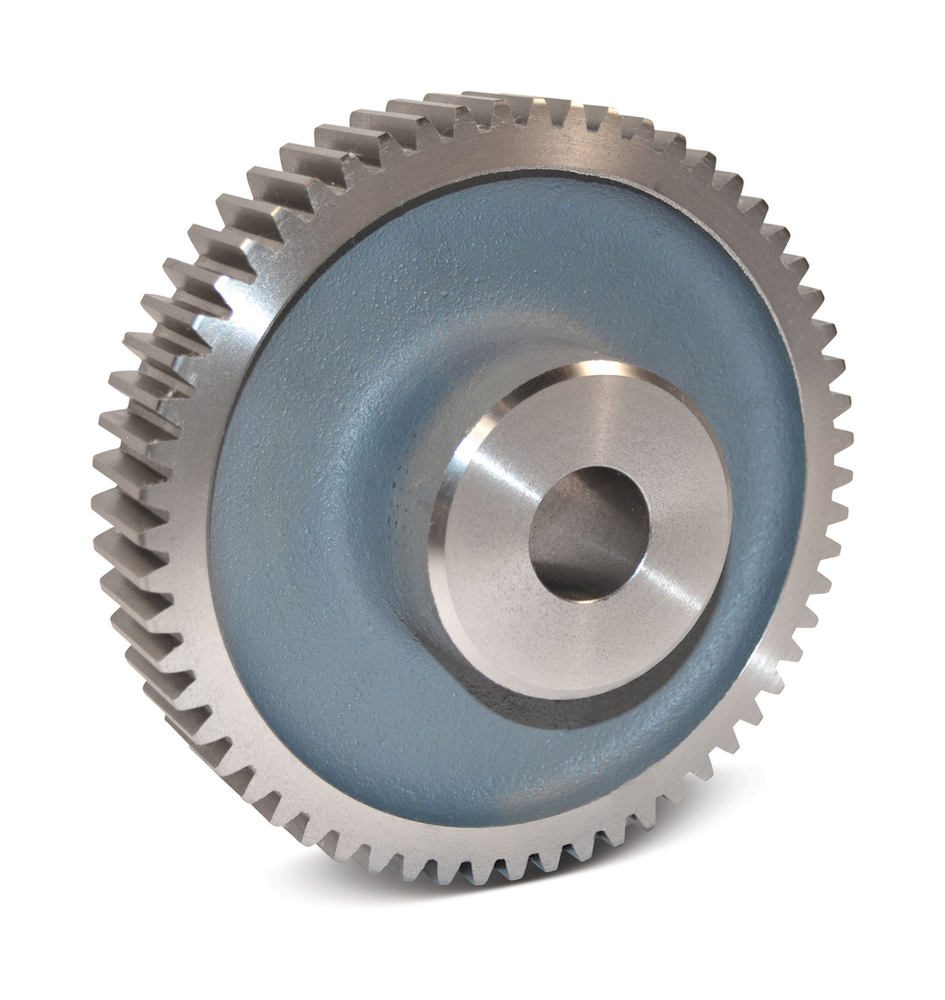

Boston Gear YH48B
Description
Boston Gear YH48B is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bore Diameter
- 1.000 in
- Diametral Pitch (DP)
- 8 DP
- Face Width [Imperial]
- 1.500 in
- Hub Diameter [Imperial]
- 2.50 in
- Keyway
- No Keyway
- Material
- Cast Iron
- Number of Teeth
- 48
- Outside Diameter [Imperial]
- 6.250 in
- Pitch Diameter [Imperial]
- 6.000 in
- Pressure Angle
- 20 Degrees
- Rated Torque
- 1072 @ 600 RPM Max
- Setscrew/Other
- No Setscrew
- Weight [Imperial]
- 8.001 lbs
