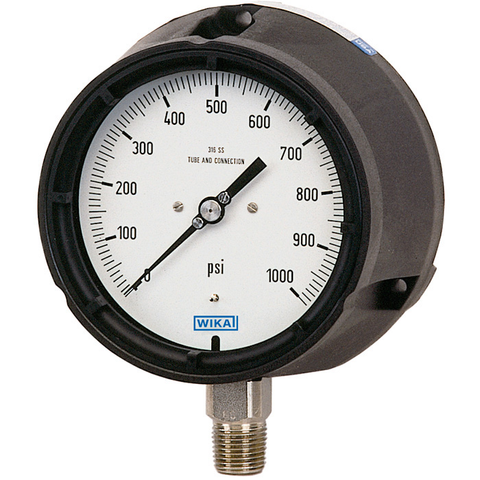

This high-quality Bourdon tube pressure gauge has been designed especially for the process industry. The use of high-quality materials and the robust design are geared to applications in the chemical and process engineering industries. Scale ranges of 0 … 10 to 0 … 30,000 psi [0 ... 0. 6 to 0 ... 2,000 bar] ensure the measuring ranges required for a wide variety of applications. WIKA manufactures and qualifies the pressure gauge in accordance with the standard ASME B40. 100. As a safety function, this instrument has a solid baffle wall with blow-out back. In the event of a failure, the operator is protected at the front side, as media or components can only be ejected via the back of the case. The glass-fibre reinforced POCAN® case offers the necessary stability for reproducible measurements, even under aggressive ambient conditions. With the model 233. 34, the case filling in combination with a screwed-in restrictor enables use in applications with highly dynamic pressure loads and vibrations.Bourdon tube pressure gauge, stainless steel , 0/10000 psi, 1/2 NPT

WIKA 9834120 is now available from Williams Automation.

If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.

We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.

Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
