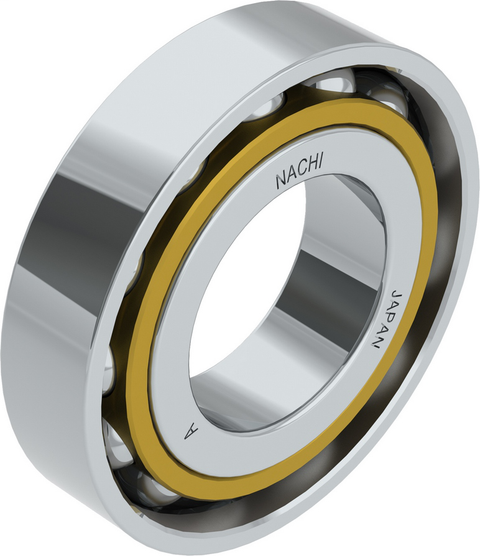

7306BMUC3 - Angular Contact Ball Bearing - Single Flush Ground - 40° - (30x72x19) SINGLE ROW ANGULAR CONTACT BALL BEARINGS – 40° UNIVERSAL GROUND The Single Row Angular Contact Ball Bearing was designed to support radial, axial or composite loads, however, the axial load must be in one direction. The high thrust capacity is achieved by a higher shoulder on one side of the outer ring. The direction of the load through the balls forms the contact angle. The thrust capacity increases with the contact angle. The BMU bearings are commonly referred to as thrust bearings. These bearings have a 40° contact angle to accept heavy axial loads. The bearings have Universally Flush Ground rings to facilitate mounting in multiple bearing sets. The inner and outer rings have identical widths. These bearings can be mounted as DB, DF and DT pairs or can be combined into triplex and quadraplex sets. When two bearings are mounted together, a clearance or preload may be obtained without the use of shims or spacers. This bearing has a machined brass cage and is not available with seals or shields. These bearings are most commonly used in vertical pump and motor applications.7306BMUC3 - Angular Contact Ball Bearing - Single Flush Ground - 40°

Nachi America 7306BMUC3 is now available new, surplus, and used from Williams Automation.

If you need a specific firmware or series relating to this item, please call or email us with your request.

We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.

Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.

Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
