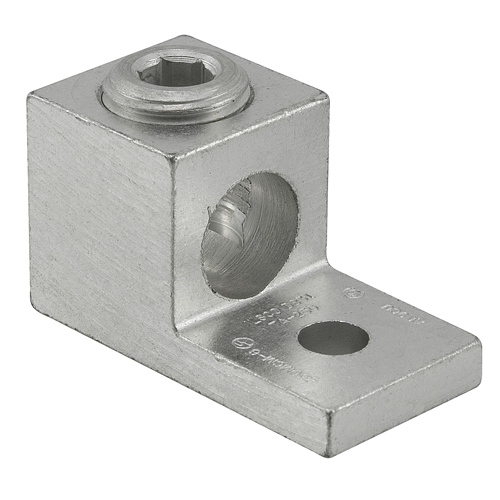

ILSCO TA-250

Additional Class Attributes

• Connection
  • Mechanical
• Mounting Hole Type
  • Thru
• Number of Conductors
  • 1
• Number of Mounting Holes
  • 1
• Number of Poles
  • 1
• Number of Ports / Wireways
  • 1

Additional Technical Specifications

• Conductor Type
  • Stranded

Bolt and Screw Sizes

• Mounting Bolt/Stud Size
  • 5/16
• Number of Wire Binding Screws per Port
  • 1
• Wire Binding Screw Size
  • 11/16
• Wire Binding Torque
  • 275

Color

• Color
  • Silver

Conductor Ranges

• Conductor Range AL Stranded (Primary, run, main, line)
  • 250 kcmil - 6 Str
• Conductor Range CU Stranded (Primary, run, main, line)
  • 250 kcmil - 6 Str

Dimensions

• Dimension G (IN)
  • 0.453
• Drive Size Main
  • 5/16
• Drive Type Main
  • Internal Hex
• Height BX (IN)
  • 2
• Height (mm)
  • 28.4988
• Length (mm)
  • 50.3936
• Mounting Hole Diameter (IN)
  • 0.328
• Mounting Hole Spacing (mm)
  • 0
• Tang Length (IN)
  • 0.992
• Tang Thickness (IN)
  • 0.25
• Tang Width (IN)
  • 0.99
• Weight BX (LB)
  • 4.3638
• Width BX (IN)
  • 6.1875
• Width (mm)
  • 25.146

Environment and Temperature

• Temperature Rating
  • 90°C

General

• Bag Quantity
  • 1
• Carton Quantity Description
  • STD PACK QTY 25
• Dual Rated
  • Yes
• NEMA Code
  • S-588-3
• UPC Code
  • 78366988942

Material and Finish

• Connector Finish
  • Tin
• Material
  • Aluminum
• Wire Binding Hardware Finish
  • Tin
• Wire Binding Hardware Material
  • Aluminum

Specifications

• Height
  • 1.122 in | 28.4988 mm
• Length
  • 1.984 in | 50.3936 mm
• Weight
  • 0.266 lbs
• Width
  • 0.99 in | 25.146 mm

Testing Standards

• CSA File Number
  • LR-29601
• CSA Standard
  • C22.2 No. 65-03
• Prop65 Compliance
  • This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• ROHS Indicator
  • IND
• UL Control Number
  • 453G
• UL / CULUS Specification
  • UL 467 Listed, UL 486A/B Listed
• UL File Number
  • E6207

Voltage

• Voltage Rating
  • 35 kV
