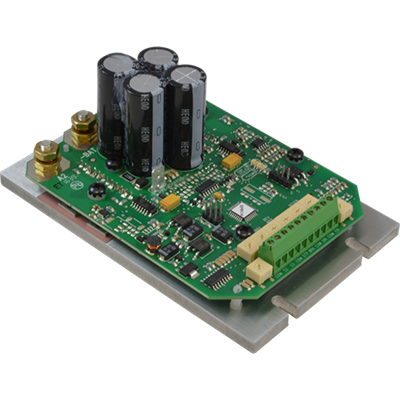

The DCR600-60 is a microprocessor based, low voltage PWM drive for brushed DC motors up to 48 VDC, rated for 30 amps continuous operation or 60 amps for one minute. They are regenerative controls capable of braking or reversing on-the-fly without the use of braking resistors or motor lead swapping. The drives are equipped with a brake output that can be used to power electro-mechanical brake or an external run status LED. There are two on-board LEDs that are used to communicate run status and fault conditions, while jumpers are used to select between Speed or Torque mode operation as well as unidirectional or bidirectional control with a 0 – 5 VDC analog signal. Protective circuitry helps shield the drive from shorts on the armature output and a pre-charge circuit limits in-rush current to protect the power contacts. The microprocessor allows for custom programming to fit various OEMs custom needs, potentially eliminating the need for a PLC and supporting devices. As an example, drives can be programmed for use in the field without trim pots, saving the customer time and money on installation, calibration, and field support.DCR Series DCR600-60 DCRx00-60 Series

American Control Electronics DCR600-60 is now available new, surplus, and used from Williams Automation.

If you need a specific firmware or series relating to this item, please call or email us with your request.

We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.

Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.

Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
