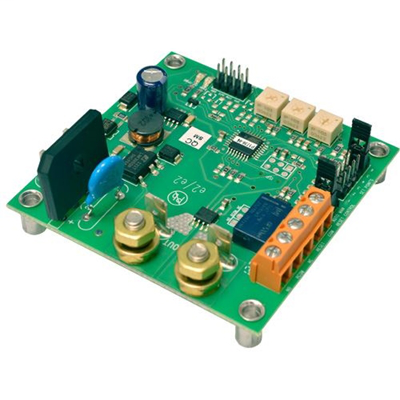

The CMC series is a stand-alone accessory card that can provide a current limit alarm. Compatible with any DC motor controller, the card is wired in series with a DC motor. Using a jumper to set a base current limit trip point, an on-board OFFSET trim pot can be used to finely adjust the trip point. A TIME DELAY trim pot can be used to determine how long the motor’s amperage draw must be above the trip point before determining it’s truly a fault scenario. This prevents false alarms from startup draws and momentary surges. When the card determines it’s a trip, it will toggle a N.O. output closed and another N.C. output open. These contacts are to be used as switches to turn on or off other circuits, such as LEDs, relays, or speakers. The card can be set to stay tripped or can be set to automatically reset (un-trip) once current falls below an adjustable HYSTERESIS setting. This feature rich current sensing module is a valuable tool in new and existing systems where an added level of monitoring and protection is required.CMC Series CMC100-20 Current Monitoring Cards

American Control Electronics CMC100-20 is now available new, surplus, and used from Williams Automation.

If you need a specific firmware or series relating to this item, please call or email us with your request.

We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.

Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.

Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
