The ACF series is a microprocessor based variable frequency drive. The user adjustable trim pots allow the user to setup the drive similar to a DC motor control, meaning quick and easy installation without any of the programming typically associated with VFDs. The ACF704-0.65 model includes an isolation card for remote control with any 0-5V or 0-10V anlog signal, as well either a PWM signal or by Modbus RTU. ACF series drives control 115 or 230 VAC motors, single or three phase, with either a 115 or 230 VAC single phase input. This is because the ACF drive is equipped with a voltage doubling capability that allows you to run a 230 VAC motor when only a 115 VAC single phase power is available. The drive’s internal carrier frequency can easily be changed from 16kHz to 1.6kHz to minimize switching losses or reduce electrical interference. Stopping methods include coast to stop or DC injection braking. Incorporated into the design is a microprocessor which provides flexibility of creating custom programs that can include specific user setting for OEM applications. These full featured and compact AC drives are the perfect choice to run any 3 phase and some single phase motors.ACF Series ACF704-0.65 None

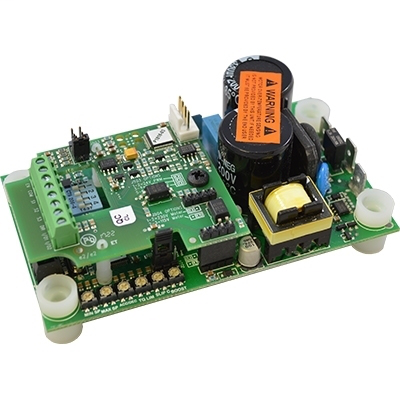

American Control Electronics ACF704-0.65 is now available new, surplus, and used from Williams Automation.

If you need a specific firmware or series relating to this item, please call or email us with your request.

We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.

Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.

Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
