The ACF series is a microprocessor based variable frequency drive. These drives look and act like DC drives, meaning quick and easy setup without any programming. These drives are equipped with user adjustable trim pots to set Max. Speed, Min. Speed, Slip Comp, Boost, TQ Limit, Accel and Decel / Injection Braking parameters. ACF700 drives allow a 115 or 230 VAC input with a 115 or 230 VAC out, independent of the input potential. This is because the ACF700 is equipped with a unique voltage doubling capability that allows you to run a 230 VAC motor when only a 115 VAC single phase power is available. While the input is single phase, the output can be single or three phase. The drive’s internal carrier frequency can easily be changed from 16kHz to 1.6kHz to minimize switching losses or reduce electrical interference. Stopping methods include coast to stop or DC injection braking. Incorporated into the design is a microprocessor which provides flexibility of creating custom programs that can include specific user setting for OEM applications. These full featured and compact AC drives are the perfect choice to run any 3 phase, and some single phase motors, rated at 4 amps or below.ACF Series ACF700-4

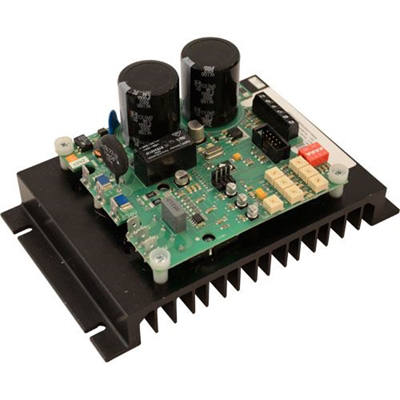

American Control Electronics ACF700-4 is now available new, surplus, and used from Williams Automation.

If you need a specific firmware or series relating to this item, please call or email us with your request.

We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.

Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.

Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
