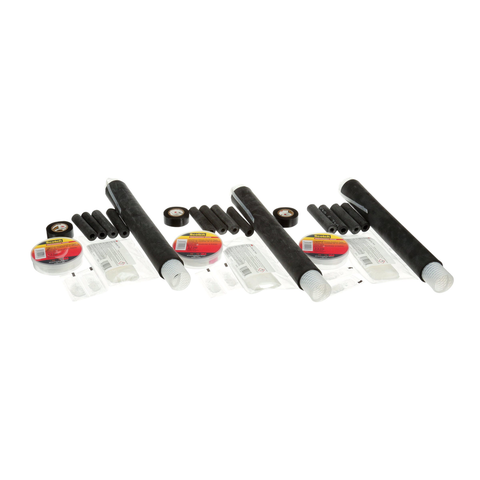

3M Motor Lead Inline Splicing Kits 5300 Series are designed for splicing motor lead cables to incoming feeder cables. 3M Motor Lead Splicing Kits 5331-5334 can accommodate inline connections, 5/8 kV shielded and non-shielded feeders. The splices main component, the slip-on splice cover, is made from EPDM rubber. A mastic strip is used for the moisture seal on the inline kits. These kits are designed to be used with copper compression, one- or two-hole lugs. After being crimped onto the cables, the lugs are bolted together in an inline configuration, then insulated and sealed with the 3M Motor Lead Splicing Kits. Each kit contains all the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M Scotchlok 30000 Series copper compression lugs, or other UL listed copper lugs, can be used. In addition, 3M Motor Lead Splicing Kits 5331-5334 require vinyl tape which can also be purchased separately. For inline splice kits: The longitudinal space required for assembly will be approximately 2 (splice cover length), to allow space for the splice while the connection is being made. Kit contents include: (3) Cold Shrink tubes (12) Adapters (3) Rolls Scotch Stress Control Tape 2220 (3) Bags of solvent cleaning cloths (6) Tubes of silicone grease (3) Rolls Scotch Linerless Rubber Splicing Tape 130C (3) Instruction sheets3M Motor Lead Inline Splice 5334, 5-8 kV, 250-500 kcmil (feeder), 4/0 AWG-500 kcmil (motor lead), 1/case

3M 7100164408 is now available from Williams Automation.

If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.

We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.

Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
